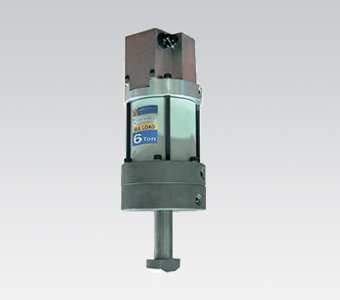

The TR system uses a hydraulic mechanism with a 90° turning movement to lock molds and dies into position. This heavy duty Clamping System is available in three different models with a clamping force up to 16 tons.
Specifications

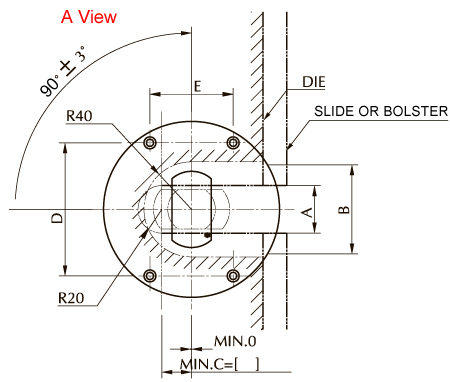

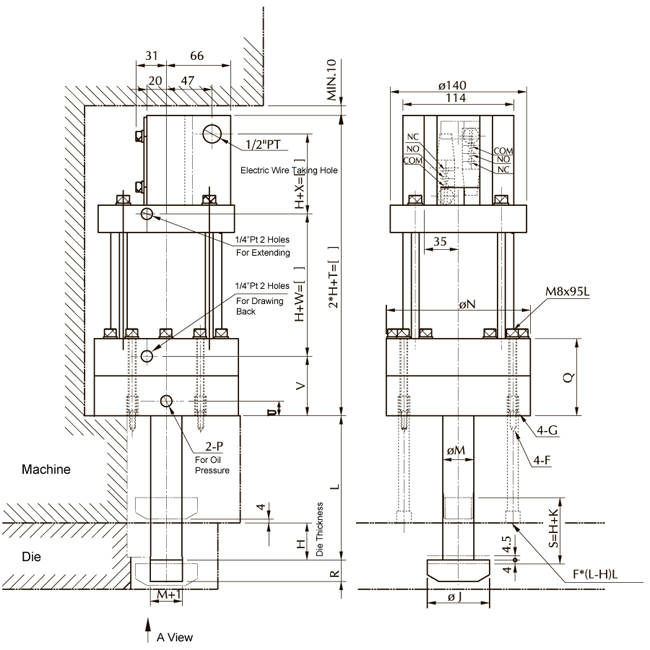

| Proof Pressure | 27.0MPa(275kgf/cm2) |
| Max Working Pressure | 18.1MPa(185kgf/cm2) |
| Working Pneumatic Range | 0.4~0.7(4~7kgf/cm2) |
| Ambient Temperature Range | -5~60°C |
| Hydraulic Fluid | ISO VG32~VG56 |
| Model | Clamping force(at 185kgf/cm2) | Requited Qrantity(cc.) | A±1 | MIN.B |
| TR-6 | 6 | 32.5 | 40 | 75 |
| TR-10 | 10 | 52.5 | 50 | 95 |
| TR-16 | 16 | 84.0 | 60 | 110 |
| Model | MIN.C | D | E | F | G |
| TR-6 | 25 | 112 | 70 | M8*16 Deep | M12*20 Deep |
| TR-10 | 30 | 116 | 70 | M10*25 Deep | M14*30 Deep |
| TR-16 | 35 | 120 | 76 | M10*25 Deep | M14*35 Deep |
| Model | J | K | M | N | PT | Q | R |
| TR-6 | 64 | 30 | 32 | 148 | 1/4 | 79 | 22 |
| TR-10 | 84 | 35 | 40 | 158 | 3/8 | 89 | 27 |
| TR-16 | 99 | 40 | 50 | 168 | 3/8 | 44 | 32 |
| Model | T | U | V | W | X | kg Mass |
| TR-6 | 235 | 15 | 61 | 108 | 44 | 20 |
| TR-10 | 252 | 16 | 74 | 110 | 49 | 25 |
| TR-16 | 267 | 16 | 79 | 115 | 54 | 27 |
