Features
| • | Large work table size ( with fixed hold ) |
| • | Automatic mold opening adjustment ( just input die thickness parameter and machine will automatically adjust ) |
| • | Machine safety door size adjuster |
| • | Die locating slot/mold platen chamfer |
| • | Fixed platen for mold pulling |

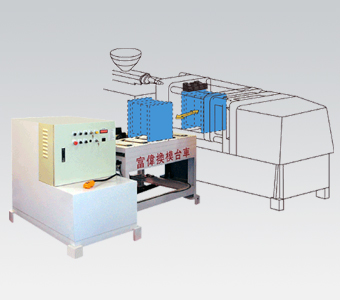

System Introduction

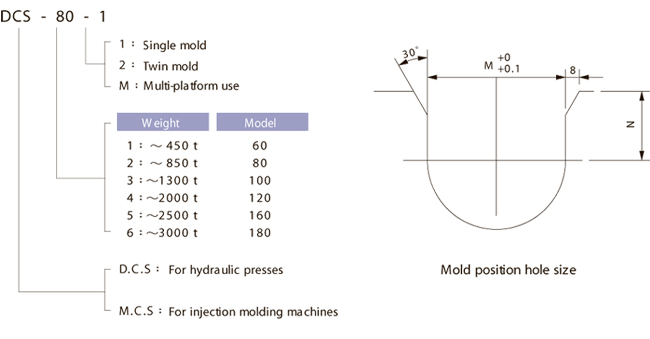

In order to select the most appropriate mold or die cart system for your needs please view the product codes below. There is also a table showing the range of different sizes of mold cart systems available for injection molding machines.
| Injection molding machines | No. of clamping system | Rollers | Position hole size | ||
| Weight | Clamping force | M(mm) | N(mm) | ||
| ~450t | 80t | TFH-10x8 | 60 | 50 | 30 |
| ~550t | 128t | TFH-16x8 | 80 | 50 | 30 |
| ~850t | 128t | TFH-16x8 | 80 | 50 | 30 |
| ~1300t | 200t | TFH-25x8 | 100 | 60 | 38 |
| ~2000t | 320t | TFH-40x8 | 120 | 80 | 40 |
| ~2500t | 320t | TFH-40x8 | 160 | 80 | 40 |
| ~3000t | 320t | TFH-40x8 | 180 | 80 | 40 |
