Fixed Clamps

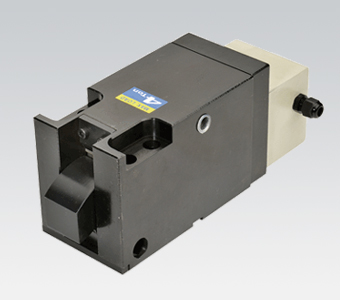

The Die / Mold Cart System can also use pneumatic type fixed clamps to securely clamp the mold in place. These high quality fixed type clamps allow for repeatable, high pressure clamping with less distortion on equipment resulting in longer die and mold life. Forwell’s clamps can adapt to almost all configurations of dies and molds and are available in a range of different models.

Specifications

Model TFL1L TFL2.5L TFL4L
Tons Clamping (Ton) hydraulic pressure  140kgf/cm2 1 2.5 4
Tons Clamping (Ton) hydraulic pressure  0kgf/cm2 0.05 0.1 0.16
Full Stroke (mm) 3.5 4 4
Clamping Stroke Y (mm) 2 2 2
Extra Stroke Z (mm) 1.5 2 2
Cylinder Capacity st Full Stroke when clamping (cm3) 15 41 92
Cylinder Capacity st Full Stroke when unclamping (cm3) 6 11 28
Model TFL6L TFL110L TFL16L
Tons Clamping (Ton) hydraulic pressure  140kgf/cm2 6.3 10 16
Tons Clamping (Ton) hydraulic pressure  0kgf/cm2 0.25 0.4 0.6
Full Stroke (mm) 4 4.5 4.5
Clamping Stroke Y (mm) 2 2 2.
Extra Stroke Z (mm) 2 2.5 2.5
Cylinder Capacity st Full Stroke when clamping (cm3) 163 298 470
Cylinder Capacity st Full Stroke when unclamping (cm3) 48 87 143

Dimensions

Model E F L M N
TFL1L 42 21 11 118 9
TFL2.5L 56 33 16 145 13
TFL4L 76 39 19 177 14.5
TFL6L 90 43 21 197 15
TFL10L 112 57 25 238.5 19
TFL16L 137 78 32 285 20
Model R S U V W
TFL1L 52 18 38 12 18
TFL2.5L 78 27 58 17 22
TFL4L 88 35 68 20 26
TFL6L 108 45 84 22 30
TFL10L 135 55 106 30 36
TFL16L 182 72 135 40 50
Model Q h(MIN) A
TFL1L M8 20 50
TFL2.5L M10 30 50
TFL4L M12 30 60
TFL6L M14 35 60
TFL10L M18 40 55
TFL16L M24 40 62
Model B C D PT
TFL1L 59 9 21.5 1/8
TFL2.5L 78 15 10 1/4
TFL4L 93.5 15 15 1/4
TFL6L 99 24 16 1/4
TFL10L 121 30.5 25 3/8
TFL16L 156.5 30.5 77 3/8
