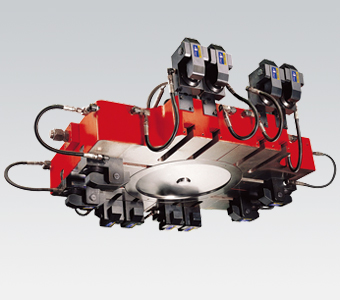

Piercing Plate Unit Introduction

Specially constructed piercing plate, made from precision processed and hardened steel with multiple clamps to ensure smooth stripping and piercing operations. This Piercing Plate Unit can prevent the board and dies from being damaged by the pressing operation and therefore prolong die service life.

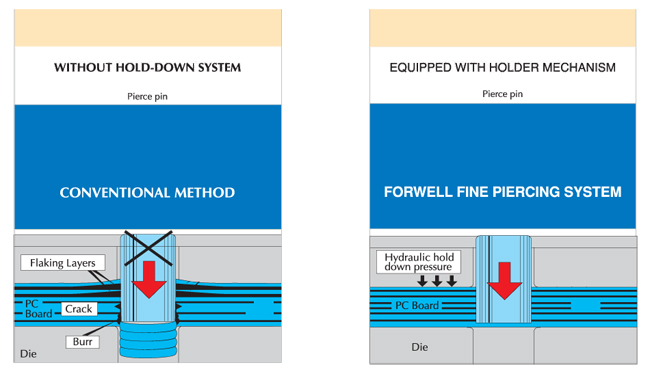

How it works

Working Function & Process

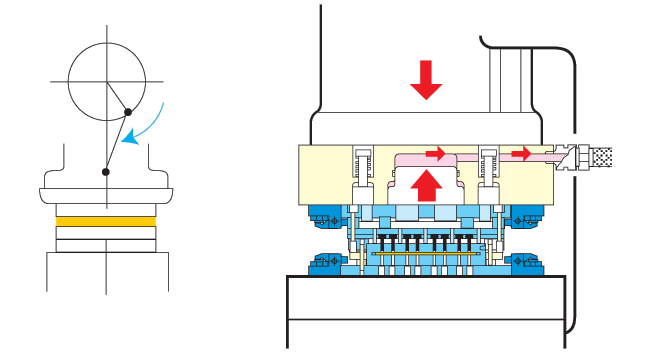

1. Hold-Down

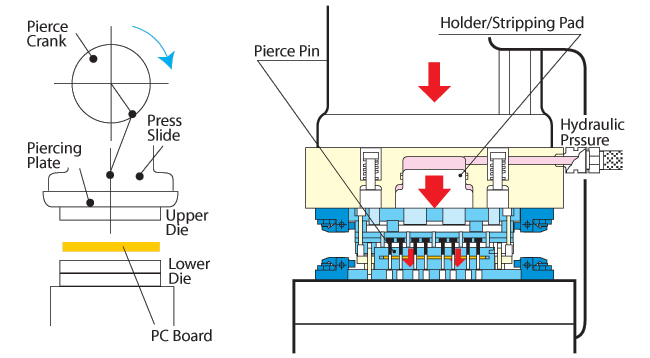

2. Piercing

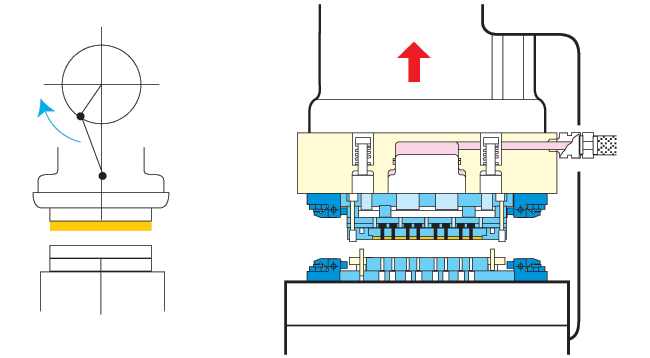

3. Holes Poerced (Board Held on Upper Die)

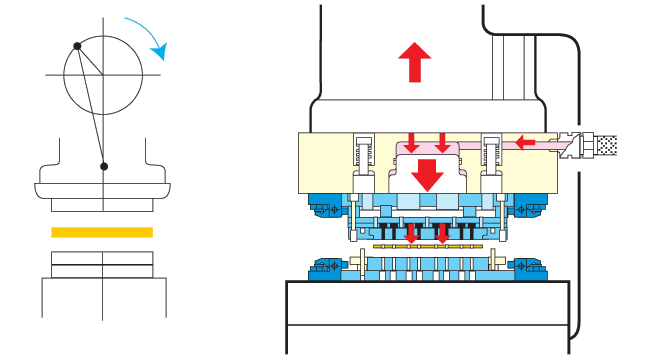

4. Stripping
