Die Lifters

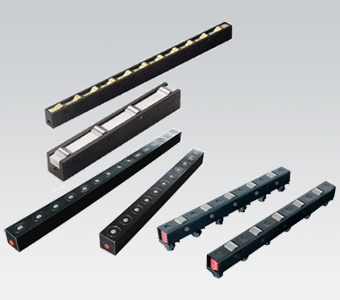

The Quick Die Change System caters for a variety of different Die Lifters which allow for simple and quick movement of dies on a press bed. Forwell supplies two different types of Die Lifters according to the press tonnage, die weight and the die positioning accuracy required. There is a choice between a Spring-Loaded Die Lifter, better suited for light to medium duty pressing operations and a Hydraulic Die Lifter more often used for medium to heavy duty pressing.

DR Die Lifter

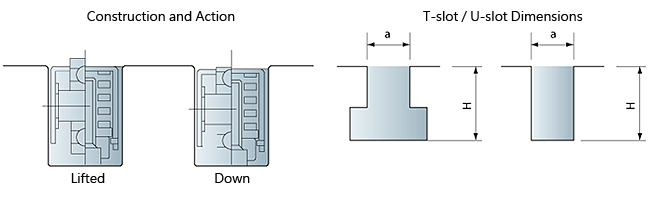

These Spring-Loaded Die Lifters easily slide into different sized T or U-slots on the bolster by adding spacers to the side walls of the Die Lifters. This allows for accurate and easy die positioning as well as quick and easy die removal. The DR Series Die Lifters are available in customizable lengths in increments of 100mm, and are available as either a ball type lifter or roller type lifter.

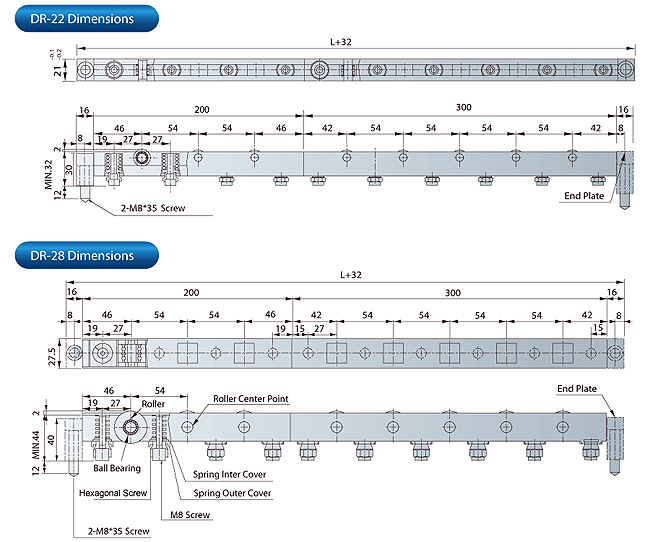

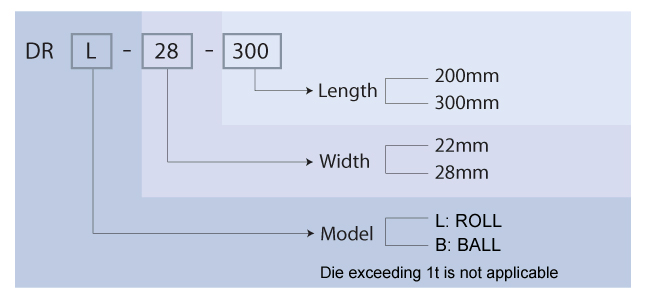

DR Diagram

Model a H
DR-22 22 33-43
DR-28 28 45-58

DR Specifications

Basic Model Width (mm) Length (mm) Springs (pcs) Lift Farce (kgf)
DRL-22-200/DRB22-200 22 200 4 37.5
DRL-22-300/DRB22-300 22 300 6 37.5
DRL-28-200/DRB28-200 28 200 4 75
DRL-28-300/DRB28-300 28 300 6 75

Maximum lift force per line (kgf)

mm
kgf
Model		 200 300 400 500 600 700 800 900 1000
DR-22 150 225 300 375 450 525 600 675 750
DR-28 300 450 600 750 900 1050 1200 1350 1500

Maximum lift force per line (kgf)

mm
kgf
Model		 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
DR-22 825 900 975 1050 1125 1200 1275 1350 1425 1500
DR-28 1650 1800 1950 2100 2250 2400 2550 2700 2850 3000

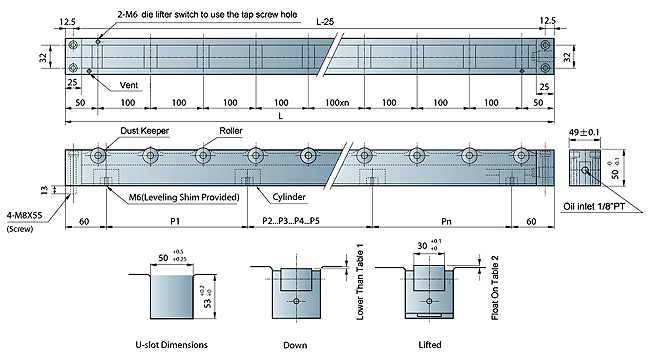

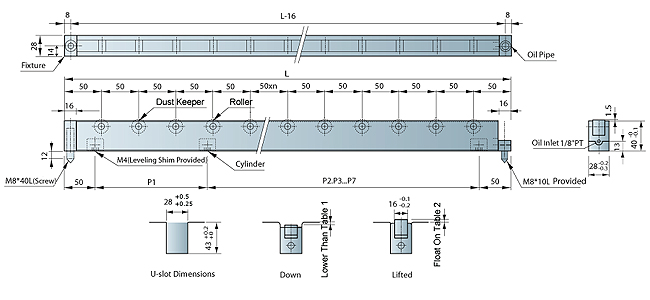

DL Die Lifter (Roller Type)

The hydraulic DL type Die Lifter is designed for very heavy duty dies and very heavy load weights. The scrap guard/scrapers keep the roller surfaces free from scraps and the rollers are arranged tightly into the bolster to prevent damage to the bottom of heavy dies. The height of the roller can be adjusted by replacing some of the built-in shims with different thicknesses.

DL-28

Model
 Overall
 Roller Q'ty
 Load Capacity
 Lift Cylinder (kg)
        Pcs Lift Farce
DL-28-400 400 7 560 2 1000
DL-28-500 500 9 720 3 1500
DL-28-600 600 11 880 4 2000
DL-28-700 700 13 1040 4 2000
DL-28-800 800 15 1200 5 2500
DL-28-900 900 17 1360 5 2500
DL-28-1000 1000 19 1520 6 3000
DL-28-1100 1100 21 1680 6 3000
DL-28-1200 1200 23 1840 7 3500
DL-28-1300 1300 25 2000 7 3500
DL-28-1400 1400 27 2160 8 4000
DL-28-1500 1500 29 2320 8 4000
Model
 Lift Cylinder Pitch (mm)
  P1 P2 P3 P4 P5 P6 P7
DL-28-400 300
DL-28-500 90 310
DL-28-600 100 340 60
DL-28-700 150 350 100
DL-28-800 95 95 390 120
DL-28-900 110 110 410 170
DL-28-1000 130 130 420 110 110
DL-28-1100 150 150 460 120 120
DL-28-1200 100 150 150 200 200 200
DL-28-1300 150 150 300 300 150 150
DL-28-1400 100 100 150 150 200 250 350
DL-28-1500 100 100 150 150 200 350 350

DL-50

Model
 Overall
 Roller Q'ty
 Load Capacity
 Lift Cylinder (kg)
        Pcs Lift Farce
DL-50-400 400 4 800 2 2200
DL-50-500 500 5 1000 3 3300
DL-50-600 600 6 1200 4 4400
DL-50-700 700 7 1400 4 4400
DL-50-800 800 8 1600 4 4400
DL-50-900 900 9 1800 4 4400
DL-50-1000 1000 10 2000 5 5500
DL-50-1100 1100 11 2200 5 5500
DL-50-1200 1200 12 2400 5 5500
DL-50-1300 1300 13 2600 6 6600
DL-50-1400 1400 14 2800 6 6600
DL-50-1500 1500 15 3000 7 7700
DL-50-1600 1600 16 3200 7 7700
DL-50-1700 1700 17 3400 8 8800
DL-50-1800 1800 18 3600 8 8800
Note: For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom
Model
 Lift Cylinder Pitch (mm)
  P1 P2 P3 P4 P5 P6 P7
DL-50-400 280
DL-50-500 90 290
DL-50-600 90 330 60
DL-50-700 140 340 100
DL-50-800 170 390 120
DL-50-900 210 400 170
DL-50-1000 125 125 410 220
DL-50-1100 150 150 400 280
DL-50-1200 150 150 400 380
DL-50-1300 150 150 200 400 280
DL-50-1400 150 150 200 400 380
DL-50-1500 150 150 200 300 300 280
DL-50-1600 100 150 250 400 300 280
DL-50-1700 100 100 150 250 300 300 380
DL-50-1800 100 100 150 250 300 300 480
Note: For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom

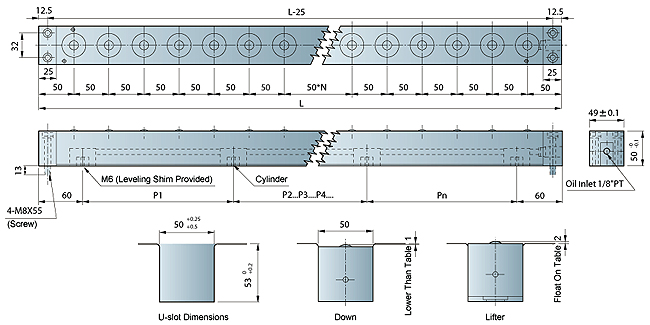

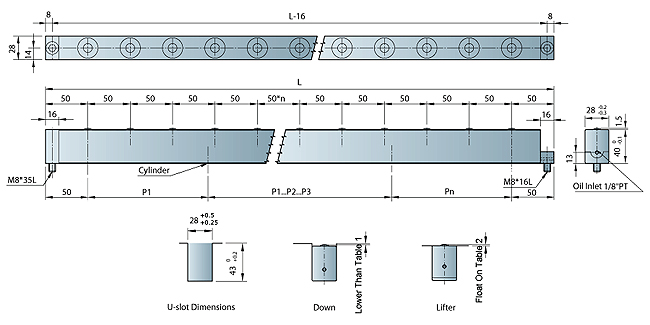

DB Die Lifter (Ball Type)

The hydraulic DB Die Lifter employs universal bearings for superior forward and reverse, left and right motion, making it easy to move dies in an out of the machine. Using a hydraulic pump this Ball Type Die Lifter can effectively lift very heavy duty dies and make them easy to replace. The DB Die Lifter is a ball type die lifter and is available in three different models depending on the die weight.

DB-28 (DB-28 for Dies 800kg or Less)

Model Overall
 Ball Q'ty
 Lift Cylinder (kg)
      Pcs Lift Farce
DB-28-400 400 7 2 1000
DB-28-500 500 9 3 1500
DB-28-600 600 11 4 2000
DB-28-700 700 13 4 2000
DB-28-800 800 15 5 2500
DB-28-900 900 17 5 2500
DB-28-1000 1000 19 6 3000
DB-28-1100 1100 21 6 3000
DB-28-1200 1200 23 7 3500
DB-28-1300 1300 25 7 3500
DB-28-1400 1400 27 8 4000
DB-28-1500 1500 29 8 4000
Note: For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom
Model Lift Cylinder Pitch (mm)
  P1 P2 P3 P4 P5 P6 P7
DB-28-400 300
DB-28-500 90 310
DB-28-600 100 340 60
DB-28-700 150 350 100
DB-28-800 95 95 390 120
DB-28-900 110 110 410 170
DB-28-1000 130 130 420 110 110
DB-28-1100 120 120 460 150 150
DB-28-1200 300 200 200 150 150 100
DB-28-1300 150 150 300 300 150 150
DB-28-1400 350 250 200 150 150 100 100
DB-28-1500 350 350 200 150 150 100 100
Note: For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom

DB-50 (DB-50 for Dies 800~1500kg)

Model
 Overall
 Ball Q'ty
 Lift Cylinder (kg)
      Pcs Lift Farce
DB-50-400 400 7 2 2200
DB-50-500 500 9 3 3300
DB-50-600 600 11 4 4400
DB-50-700 700 13 4 4400
DB-50-800 800 15 4 4400
DB-50-900 900 17 4 4400
DB-50-1000 1000 19 5 5500
DB-50-1100 1100 21 5 5500
DB-50-1200 1200 23 5 5500
DB-50-1300 1300 25 6 6600
DB-50-1400 1400 27 6 6600
DB-50-1500 1500 29 7 7700
DB-50-1600 1600 31 7 7700
DB-50-1700 1700 33 8 8800
DB-50-1800 1800 35 8 8800
Note: For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom
Model
 Lift Cylinder Pitch (mm)
  P1 P2 P3 P4 P5 P6 P7
DB-50-400 280
DB-50-500 90 290
DB-50-600 90 330 60
DB-50-700 140 340 100
DB-50-800 170 390 120
DB-50-900 210 400 170
DB-50-1000 125 125 410 220
DB-50-1100 150 150 400 280
DB-50-1200 150 150 400 380
DB-50-1300 150 150 200 400 280
DB-50-1400 150 150 200 400 380
DB-50-1500 150 150 200 300 300 280
DB-50-1600 100 150 250 400 300 280
DB-50-1700 100 100 150 250 300 300 380
DB-50-1800 100 100 150 250 300 300 480
Note: For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom

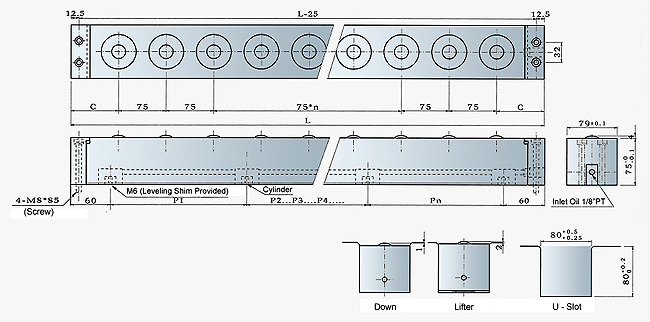

DB-80 (DB-80 for Dies 1500kg or More)

Model Overall Ball Q'ty Load Cap Lift Cylinder (kg)
  L     Pcs Lift Farce
DB-80-400 400 4 800 3 4400
DB-80-500 500 6 1200 3 4400
DB-80-600 600 7 1400 4 6600
DB-80-700 700 8 1600 4 6600
DB-80-800 800 10 2000 6 8800
DB-80-900 900 11 2200 6 8800
DB-80-1000 1000 12 2400 6 11000
DB-80-1100 1100 14 2800 8 11000
DB-80-1200 1200 15 3000 8 11000
DB-80-1300 1300 16 3200 8 13200
DB-80-1400 1400 18 3600 10 13200
DB-80-1500 1500 19 3800 10 15400
DB-80-1600 1600 20 4000 10 15400
DB-80-1700 1700 22 4400 12 17600
Note: For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom
Model Lift Cylinder Pitch (mm) Margin
  P1 P2 P3 P4 P5 P6 P7 C
DB-80-400 80 120 80 87.5
DB-80-500 90 200 90 62.5
DB-80-600 80 80 160 80 80 75
DB-80-700 90 90 220 90 90 87.5
DB-80-800 80 80 80 200 80 80 80 62.5
DB-80-900 90 90 90 240 90 90 90 75
DB-80-1000 80 80 80 80 240 80 80 87.5
DB-80-1100 90 90 90 90 260 90 90 62.5
DB-80-1200 100 100 100 100 280 100 100 75
DB-80-1300 90 90 90 90 90 280 90 87.5
DB-80-1400 100 100 100 100 100 280 100 62.5
DB-80-1500 90 90 90 90 90 90 300 75
DB-80-1600 100 100 100 100 100 100 280 87.5
DB-80-1700 90 90 90 90 90 90 90 62.5
Note: For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom
