Pump Unit Introduction
The hydraulic pump ensures tight and stable die clamping and allows the system to maintain clamping pressure on the die even when there is a power failure or when air pressure drops. Forwell’s hydraulic pump units also feature an easy to adjust air pressure valve to effectively control the systems air pressure.
These hydraulic pumps are highly energy efficient, because once the outlet pressure reaches the intended hydraulic pressure the pump will automatically stop pumping air and maintain air pressure. Furthermore these hydraulic pumps also consist of advanced on-and-off pressure sensors and an automatic shut off valve should air pressure become dangerously high.

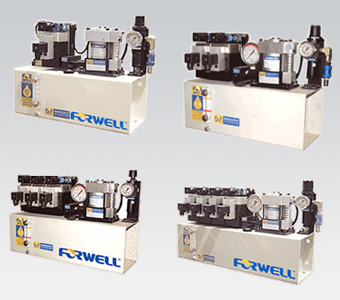

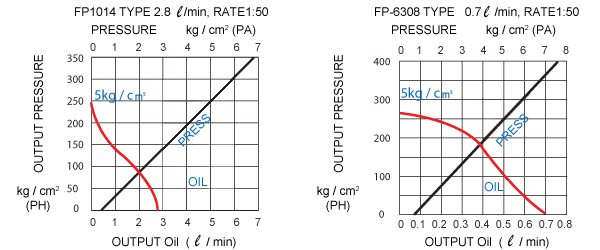

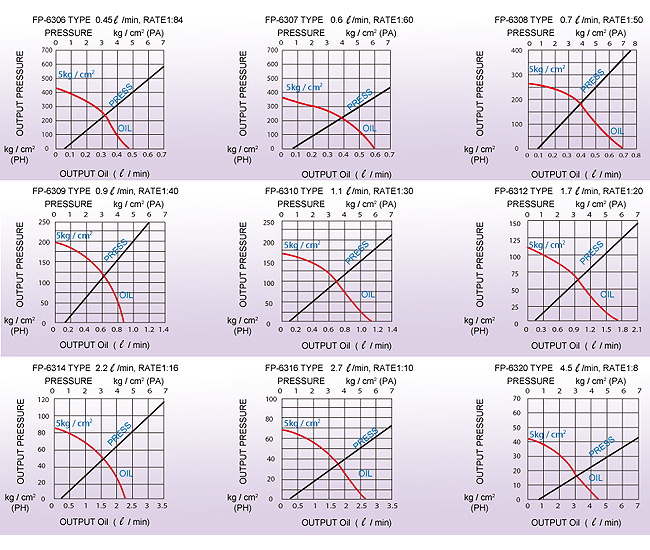

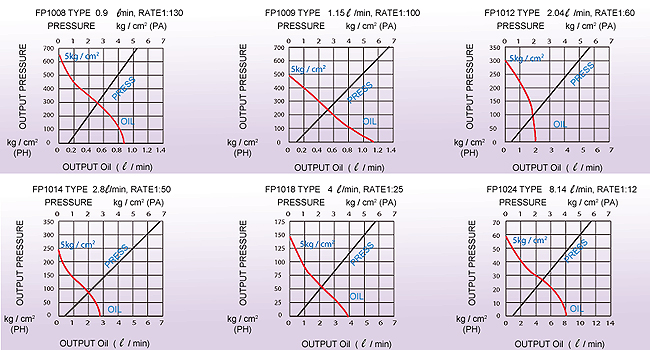

Hydraulic pump output readings

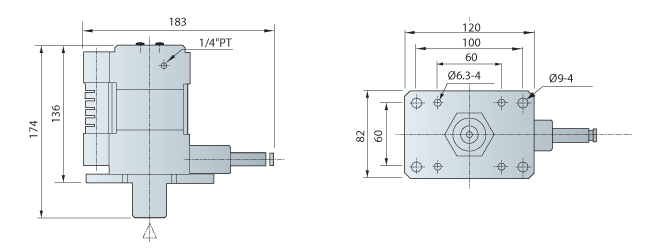

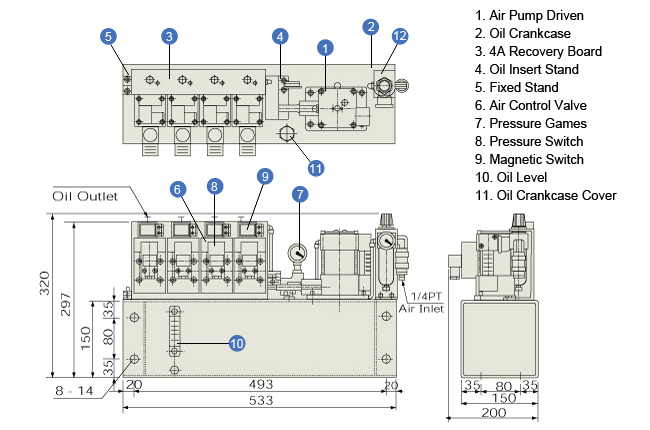

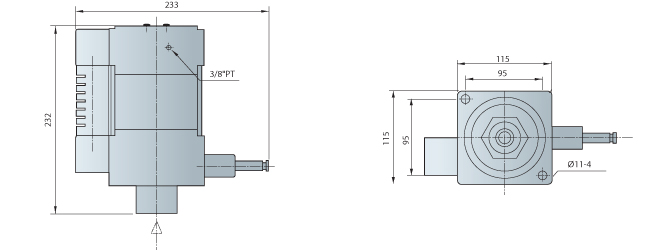

Pump Unit Diagram
Specifications

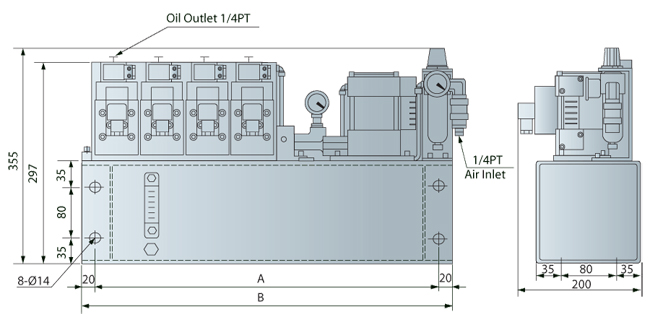

FP63 Pump
| Model | Total Circuits | A | B | Reservoir Capability  |
||
| FP63口 口 U | 1 | 353 | 393 | 6 | ||
| FP63口 口 U | 2 | 353 | 393 | 6 | ||
| FP63口 口 U | 3 | 423 | 463 | 7.5 | ||
| FP63口 口 U | 4 | 493 | 533 | 9 | ||
| Model | Available Capability ( ) |
Weight KG | Lubricant |
| FP63口 口 U | 4.7 | 23 | ISO VG32-VG68 |
| FP63口 口 U | 4.7 | 27 | ISO VG32-VG68 |
| FP63口 口 U | 5.9 | 35 | ISO VG32-VG68 |
| FP63口 口 U | 7.1 | 43 | ISO VG32-VG68 |
| Drive Fluid | Air |
| Air Pressure | 2~6 kg / c㎡ (2~6bar) |
| Operating Temperature | - 5°~60° C |
| Lubricant | Standard hydraulic oil (ISO VG32-VG68) |
| Weight | 4kg |
| （1）Air consumption MAX=0.35Nm3/ min. （2）Please refer to instructions for large air flow. （3）Specifications are subject to change, please contact us to confirm values. |
|

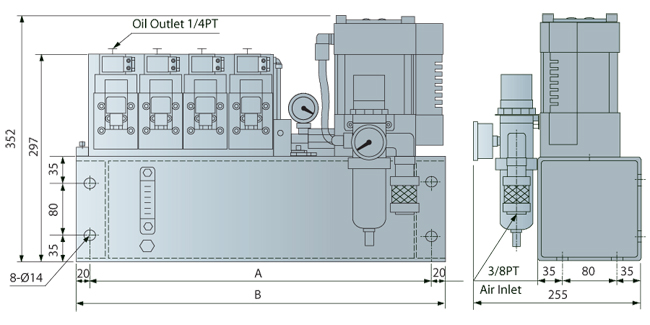

FP100 Pump
| Model | Total Circuits | A | B | Reservoir Capability |
| FP10口 口 U | 1 | 353 | 393 | 6 |
| FP10口 口 U | 2 | 353 | 393 | 6 |
| FP10口 口 U | 3 | 423 | 463 | 7.5 |
| FP10口 口 U | 4 | 493 | 533 | 9 |
| Model |
Available Capability |
Weight KG |
Lubricant |
| FP10口口U | 3.8 | 30 | ISO VG32-VG68 |
| FP10口口U | 3.8 | 34 | ISO VG32-VG68 |
| FP10口口U | 4.8 | 42 | ISO VG32-VG68 |
| FP10口口U | 5.8 | 50 | ISO VG32-VG68 |
| Drive Fluid | Air |
| Air Pressure | 2~6 kg / c㎡ (2~6bar) |
| Operating Temperature | - 5°~60° C |
| Lubricant | ISO VG32-VG68 |
| Weight | 11kg |
| （1） Air consumption MAX=0.8Nm3/ min. （2） Please refer to instructions for large air flow. （3） Specifications are subject to change, please contact us to confirm values. |
|
