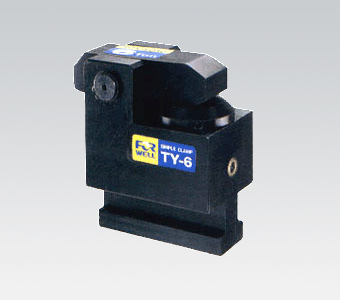

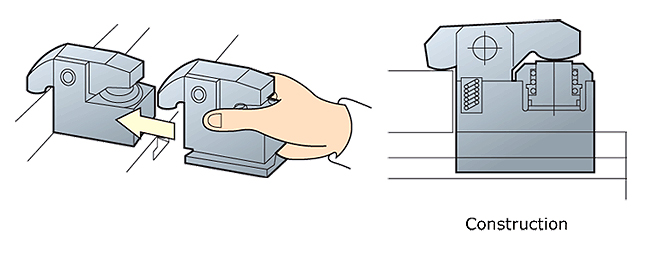

As this lever-type clamp does not require a U-slot on the die shoe it can be used in a wide range of applications. The TY type Die Clamps are machined to fit into the T-slot of the bolster for extra secure positioning. The flange-mount model Die Clamps can be bolted onto the bolster and the automatic slider model Die Clamps makes remote automatic operation possible.
Specifications
| Model | Unit | TY-1 | TY-2 | TY-4 | TY-6 | TY-10 | TY-16 | TY-25 |
| Clamping Farce(at 250kgf/cm2) | tons | 1 | 2 | 4 | 6.3 | 10 | 16 | 25 |
| Full Stroke (X) | mm | 6 | 7 | 7 | 8 | 8 | 8 | 8 |
| Clamping Stroke (Y) | mm | 3 | 2 | 3 | 3 | 3 | 3 | 3 |
| Extra Stroke (Z) | mm | 3 | 5 | 4 | 5 | 5 | 5 | 5 |
| Cylinder Capacity at Full Stroke | cc | 2 | 6.5 | 13.2 | 22.3 | 37 | 61 | 93 |
| * Extra stroke is the difference between full stroke and clamping stroke with extra space allowed for safe operation. | ||||||||

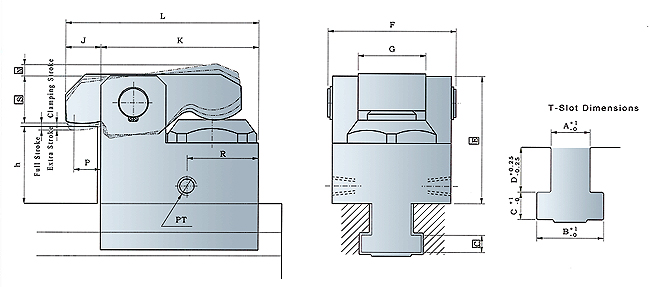

Clamp Dimensions
| Model | MIN. |
F | G | J | K | L |
| TY-1 | 49.5 | 46 | 20 | 15 | 58 | 73 |
| TY-2 | 59 | 65 | 28 | 22 | 85 | 107 |
| TY-4 | 85 | 87 | 40 | 30 | 120 | 150 |
| TY-6 | 94 | 97 | 44 | 34.5 | 133 | 167.5 |
| TY-10 | 105 | 110 | 50 | 30 | 165 | 195 |
| TY-16 | 120 | 130 | 60 | 35 | 200 | 235 |
| TY-25 | 133 | 152 | 73 | 35 | 240 | 275 |
| Model | MAX. |
P | R | MIN. |
PT | MIN. |
| TY-1 | 10 | 10 | 19 | 16.5 | 1/8 | 7 |
| TY-2 | 10 | 12.5 | 48 | 27 | 1/8 | 9.5 |
| TY-4 | 10 | 16 | 58 | 33 | 1/4 | 12 |
| TY-6 | 11 | 20 | 68 | 40 | 1/4 | 14 |
| TY-10 | 11 | 20 | 82 | 53 | 1/4 | 16.5 |
| TY-16 | 12 | 20 | 96 | 67 | 1/4 | 19 |
| TY-25 | 13 | 20 | 110 | 81 | 1/4 | 22 |
| Model | A | B | C | D | Power Unit Models |
| TY-1 | 22 | 37 | 16 | 24 | FP6308U-口-口 |
| TY-2 | 22 | 37 | 16 | 24 | |
| TY-4 | 22 | 37 | 16 | 24 | |
| TY-6 | 28 | 48 | 20 | 28 | |
| TY-10 | 28 | 48 | 20 | 28 | FP1014U-口-口 |
| TY-16 | 28 | 48 | 23 | 28 | |
| TY-25 | 36 | 56 | 25 | 28 | |
| * Die shoe thickness(h)Classify：25、30、35、40、45、50、55、60mm * Before purchase, please verify mold edge thickness (h) and T-slot (A.B.C.D.) has standard or special dimensions. |
|||||
