Die Clamp Introduction

All Forwell Quick Mold Change Systems use high quality Die Clamps for very secure clamping, quick mold changing and safer operations. These clamps can fasten Molds whether they are changed vertically or horizontally.

There are also a range of different Die Clamps available to suit your injection molding or mold casting requirements. The TY type Die Clamps are machined to fit into the T-slot of the bolster for extra secure positioning. The flange-mount model Die Clamps can be bolted onto the bolster and the automatic slider model Die Clamps makes remote automatic operation possible.

Clamp Specifications

The following specifications can help you choose the appropriate clamp type in accordance with your injection molding requirements and production situation. Make sure of your production plans and production procedure before choosing your product to be sure of the product that best suits your needs.

Mold Plate Mold Change Direction Clamping type Characteristics
No Union Vertically Moving Clamp Fixed in with T-slot
Union Vertically Fixed & Moving Clamp Clamp fixed or Moving on plate
Union Horizontally Fixed Clamp Install roller or sliding rail upon the plate. Use cart or mold exchange table for easy operation and the shortest possible mold changing time.

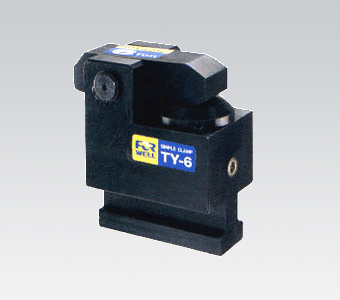

TY Die Clamp

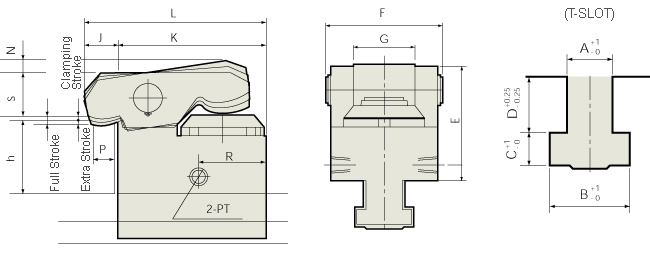

For a closer look at the exact dimensions of the TY series die clamps please see the following diagram and table.

Model MIN. E F G J K L
TY-1 49.5 46 20 15 58 73
TY-2 59 65 28 22 85 107
TY-4 85 87 40 30 120 150
TY-6 94 97 44 34.5 133 167.5
TY-10 105 110 50 30 165 195
TY-16 120 125 60 35 200 235
TY-25 133 155 73 35 240 275
Model MAX. N P R MIN. S PT MIN. C
TY-1 10 10 19 16.5 1/8 7
TY-2 10 12.5 48 27 1/8 9.5
TY-4 10 16 58 33 1/4 12
TY-6 11 20 68 40 1/4 14
TY-10 11 20 82 53 1/4 16.5
TY-16 12 20 96 67 1/4 19
TY-25 13 20 110 81 1/4 22
Model A B C D Power Unit Models
TY-1 22 37 16 24 FP6308U-口-口
TY-2 22 37 16 24 FP6308U-口-口
TY-4 22 37 16 24 FP6308U-口-口
TY-6 28 48 20 28 FP6308U-口-口
TY-10 28 48 20 28 FP1014U-口-口
TY-16 28 48 23 28 FP1014U-口-口
TY-25 36 56 25 28 FP1014U-口-口
* Die shoe thickness (h) available: 25, 30, 35, 40, 45, 50, 55, 60mm
* Before purchasing, please verify if the mold edge thickness (h) and T-slot (A.B.C.D.) have standard or special dimensions.

TY-B Die Clamp

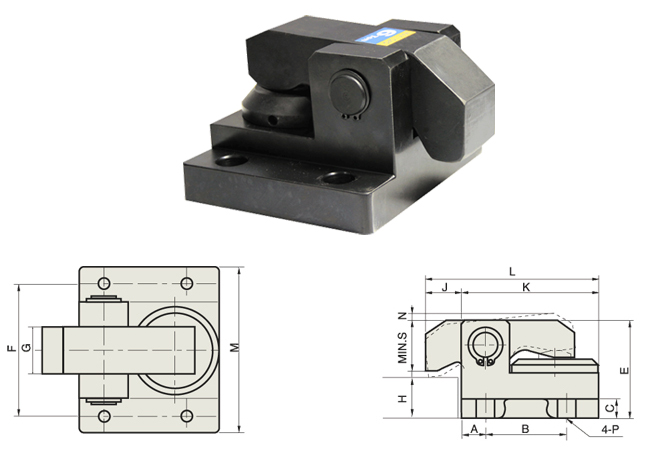

For a closer look at the exact dimensions of the TY-B series die clamps please see the following diagram and table.

Model TY-2B TY-4B TY-6B
A 15 15 28.5
B 50 72 76
C 12 18 25
MIN.E 59 85 94
F 80 110 120
G 28 40 44
M 100 135 150
J 22 30 34.5
K 85 120 133
L 107 150 167.5
N 10 10 11
MIN.S 27 33 40
P M10X25L Screw M12X40L Screw M16X50L Screw
* Clamps with a dimension greater than Max.h+D are also optionally available.
* Specify T-slot dimensions (A.B.C.D) and clamping height (H) when ordering.
* Clamping strokes and extra strokes are for standard models; custom strokes available on request.

TY-C Die Clamp

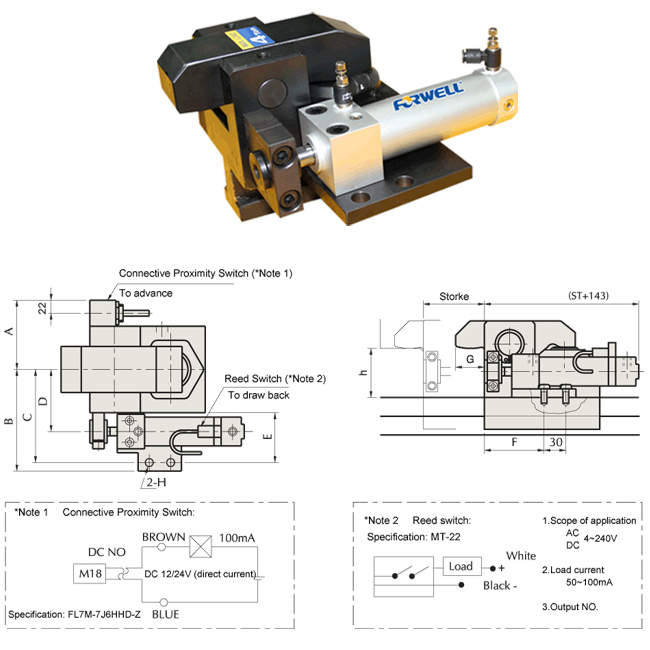

For a closer look at the exact dimensions of the TY-C series die clamps please see the following diagram and table.

Model  TY-2C TY-4C
A 51 62
B 93 104
C 86 97
D 54 65
E 57 57
F 82 82
G 22 30
H
(Depth of plate screw)		 M10×25L:
Ø8.6Hote×25Depth		 M10×25L:
Ø8.6Hote×25Depth
Air Cylinder MB32*Stroke MB32*Stroke
Model  TY-6C TY-10C
A 67 77
B 127 132
C 115 120
D 75 80
E 70 70
F 85 85
G 30 30
H
( Depth of plate screw )		 M12×25L:
Ø10.3Hote×25Depth		 M12×25L:
Ø10.3Hote×25Depth
Air Cylinder MB40*Stroke MB40*Stroke
Model  TY-16C TY-25C
A 82 94.5
B 142 154.5
C 130 142.5
D 90 102.5
E 70 70
F 85 85
G 35 35
H
( Depth of plate screw )		 M12×25L:
Ø10.3Hote×25Depth		 M12×25L:
Ø10.3Hote×25Depth
Air Cylinder MB40*Stroke MB40*Stroke
* Clamps with a dimension greater than Max.h+D are also optionally available.
* Specify T-slot dimensions (A.B.C.D) and clamping height (H) when ordering.
* Clamping strokes and extra strokes are for standard models; custom strokes available on request.
