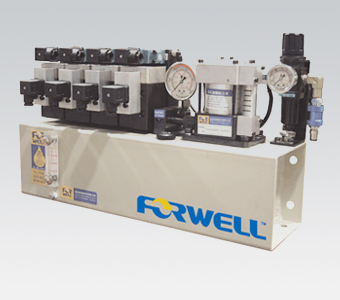

Pump Unit Introduction

The hydraulic pump ensures tight and stable mold clamping and allows the system to maintain clamping pressure on the mold even when there is a power failure or when air pressure drops. Forwell’s hydraulic pump units also feature an easy to adjust air pressure valve to effectively control the systems air pressure.

These hydraulic pumps are highly energy efficient, because once the outlet pressure reaches the intended hydraulic pressure the pump will automatically stop pumping air and maintain air pressure. Furthermore these hydraulic pumps also consist of advanced on-and-off pressure sensors and an automatic shut off valve should air pressure become dangerously high.

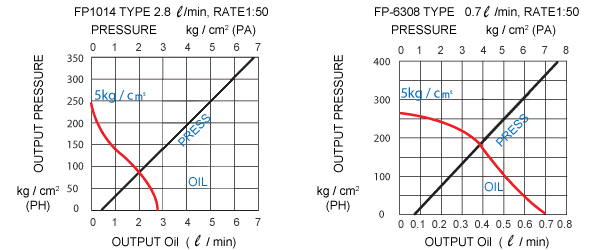

Hydraulic pump output readings

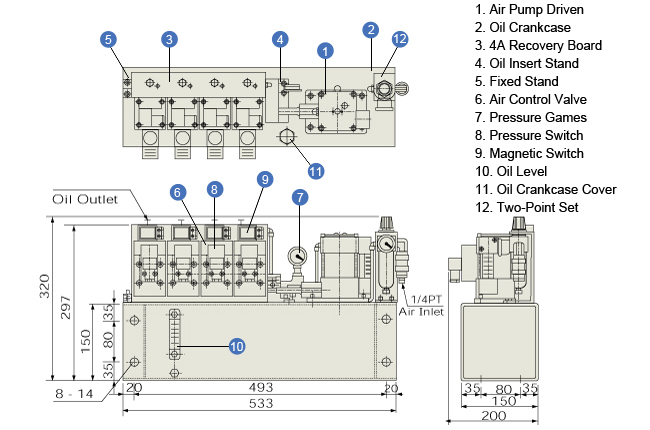

Pump Unit Diagram
